Platinum 'Panel-Fix' Insulation Fixings are High Quality, Corrosion Resistant Fixings recommended for securing rigid insulation, EPS, high density Rockwool and composites, to solid base materials.
Platinum 'Panel-Fix' Insulation Fixings may also be used as a fixing for securing our range of Damp Proof Membranes onto walls internally and externally, primarily for use in above ground installations.
Platinum 'Panel-Fix' Insulation Fixings are 8mm wide, and are available in 70mm, 90mm and 110mm Lengths.
Available in Pack Sizes of 100 Fixings or 500 Fixings.
Description
Platinum Panel-Fix Insulation Fixings

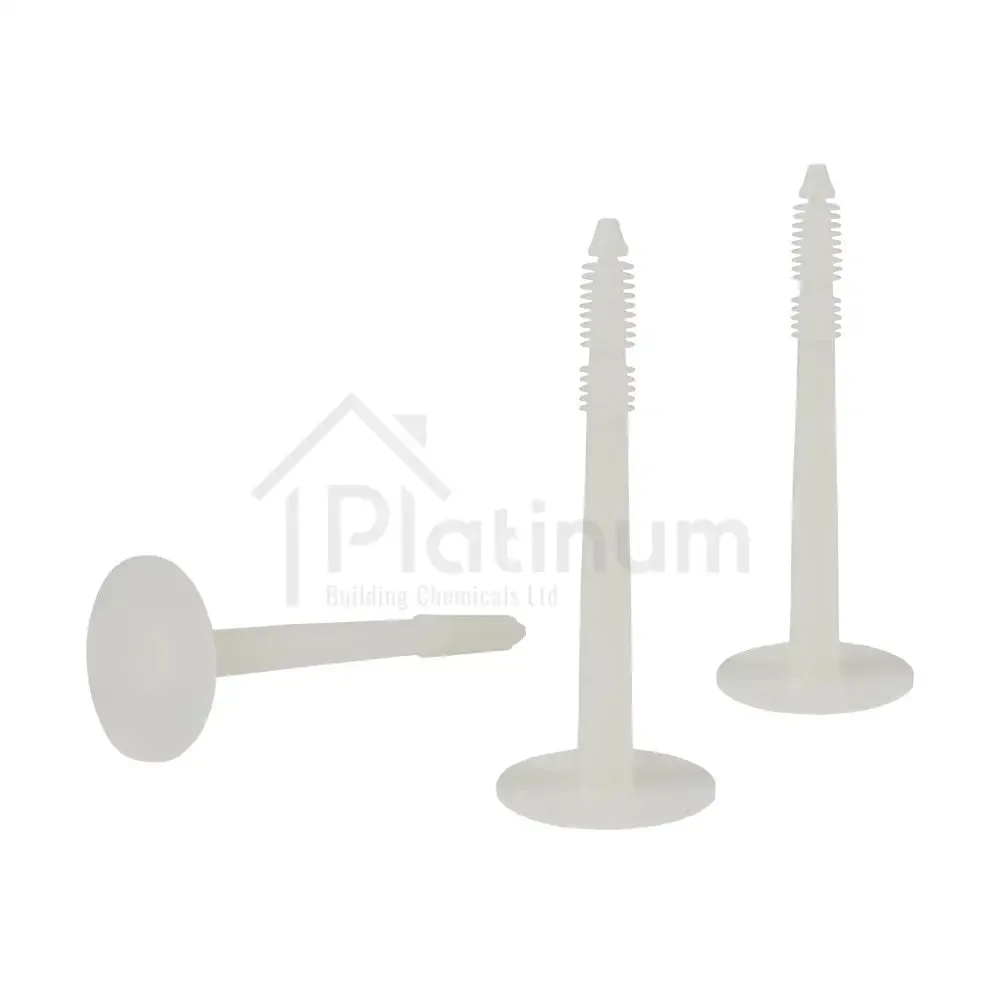

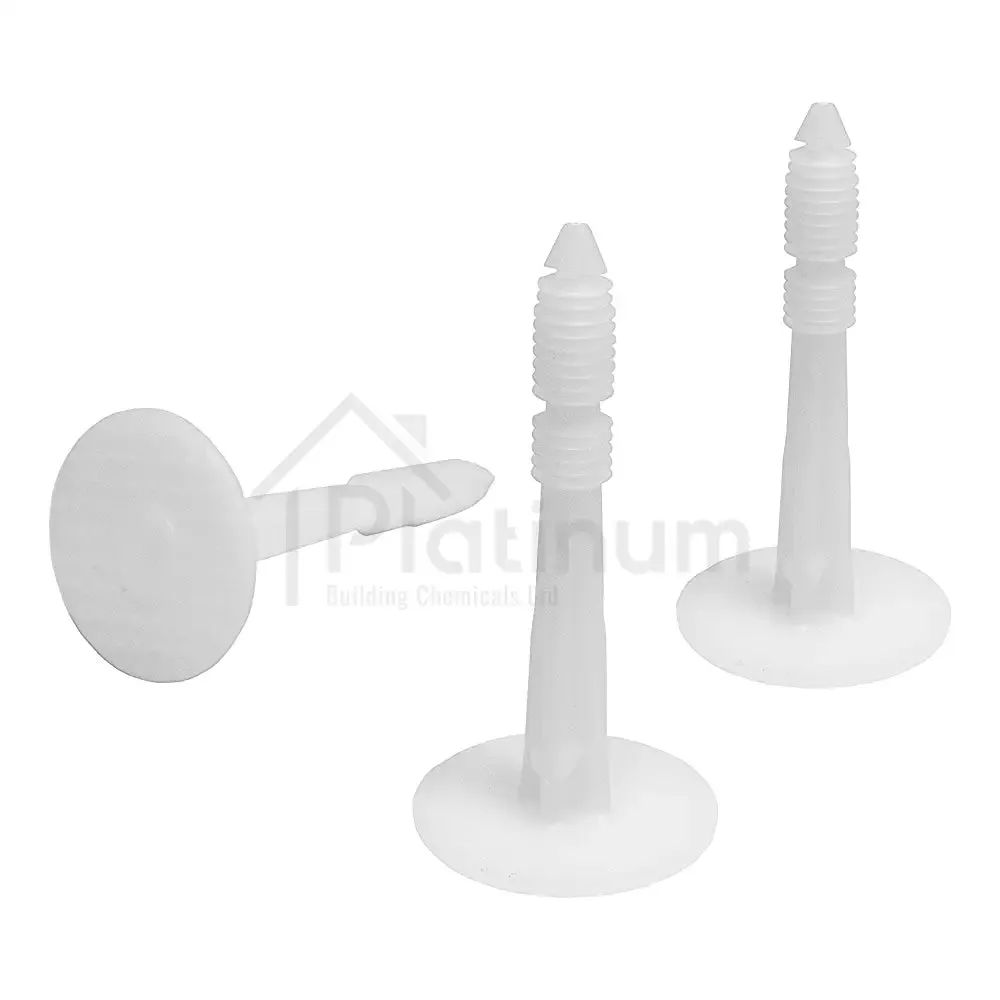

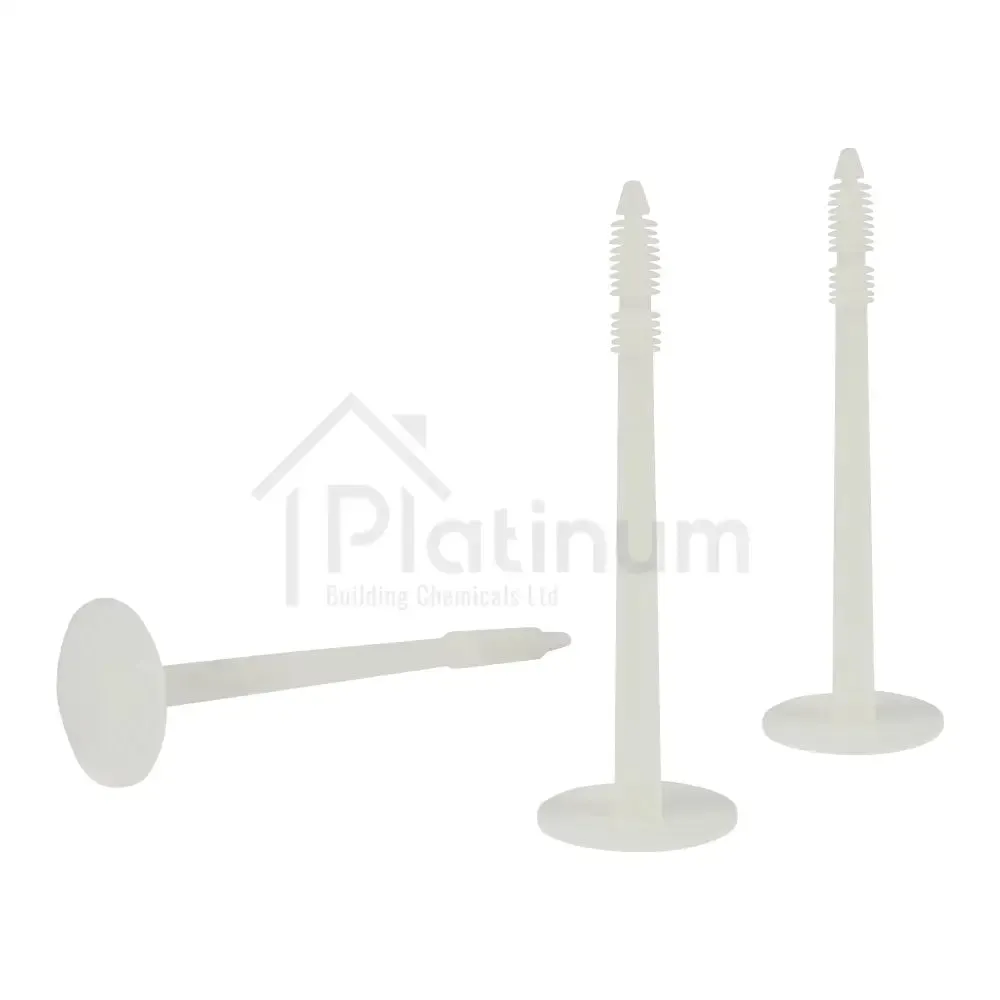

Platinum 'Panel-Fix' is a one piece Insulation Fixings manufactured from corrosion resistant polypropylene, recommended for securing rigid insulation, EPS, high density Rockwool and composites, to solid base materials.
Platinum 'Panel-Fix' Insulation Fixings may also be used for fixing and securing our range of Damp Proofing Meshed Membranes onto walls internally and externally, primarily for use in above ground installations.
The head features a rough surface to provide a 'key' for applied renders.
Platinum 'Panel-Fix' is a friction fit fixing and is installed by driving into an 8mm pre-drilled hole.
If using with a Damp Proof Membranes, then Newton® 801-M Mastic Sealant should be injected into the drilled hole before fixing the plug into the membrane, it serves to stop any ‘bridge’ happening between the damp or stained surface and the new surface and is also used for sealing around protrusions.
Technical Information:
Application Temperature Range: -30°C to 90°C.
Shear Loading: Max Recommended per Fixing - 0.025kN
Pilot Hole: 8mm Thick
